MWS WIRED GANGSAW

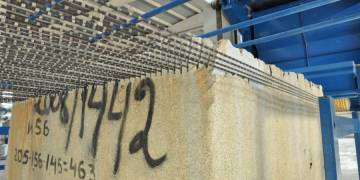

MWS – 40 is new designed diamond wire saw machine, The machine offers the best results in terms of cutting speed and precision . The machine cuts with maximum 40 diamond wires. The block trolley length can be made for 4 m, so 2 or 3 blocks can place on it.
MWS – 40 has 200 kw main motor driven by electronic inverter to adjust variable cutting speed according to the different material hardness  to be cut .

The pneumatic tensioning system allow to stretch the wires independently for each wire.

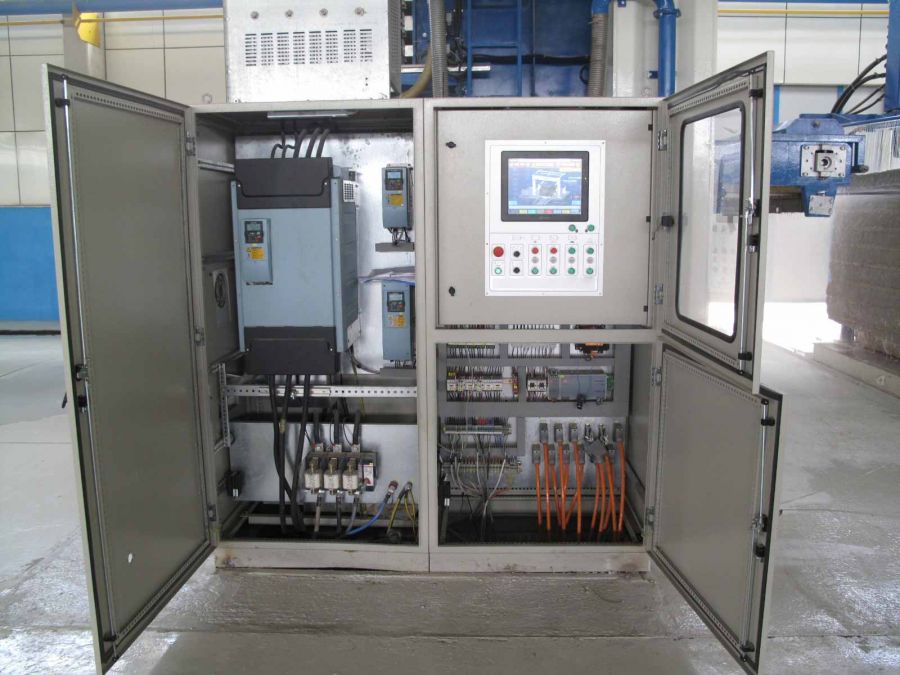

The system  controls by PLC system with digital touch screen panel .

The system allow to adjust cutting parameter settings, automatic tensioning control for each wire, self diagnostic , fults and alarms .
The machine has 4 oversized drums to drive the wires safely and eliminate the vibration during the cutting process.
There are 2 wire guiding wheels to absorb the vibration.
